Hydraulic power packs

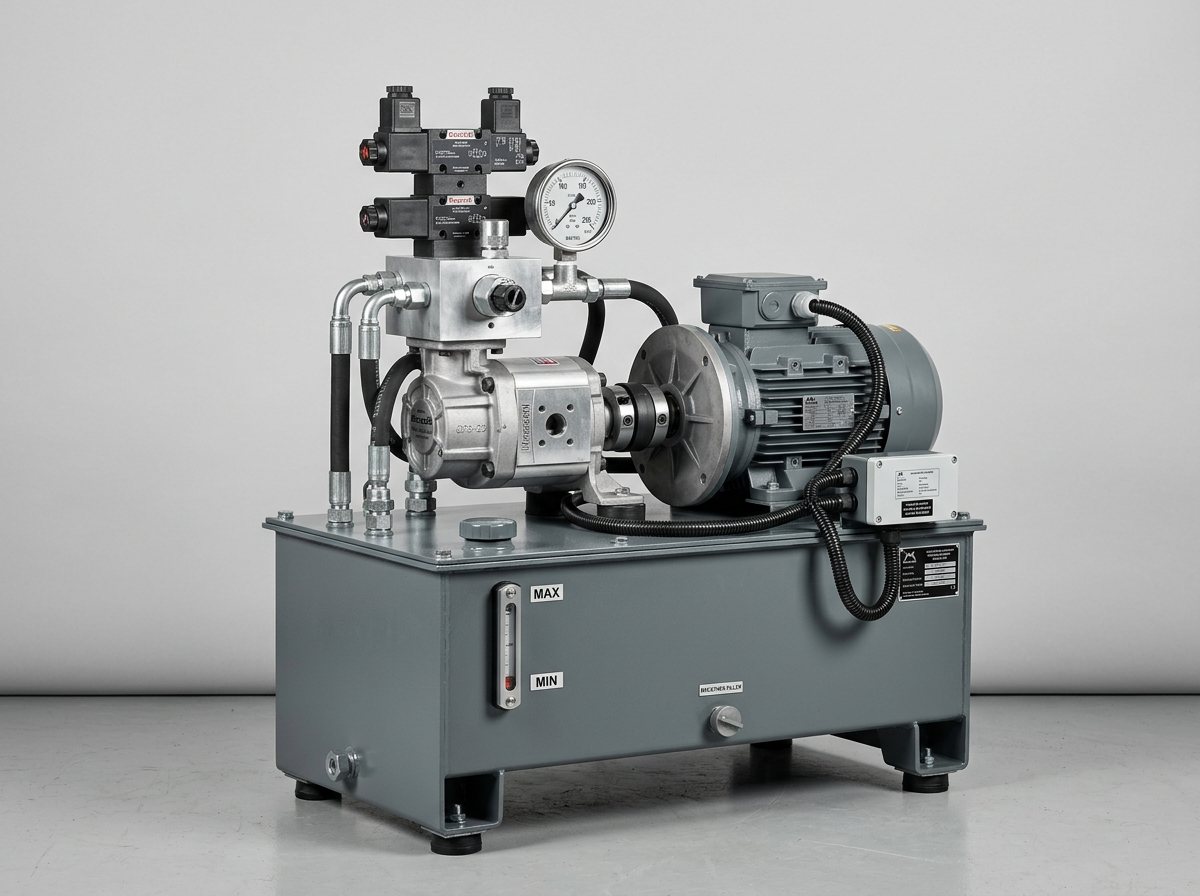

Hydraulic power pack, 15 HP
A 250-litre baffled tank, a gear pump for 40 LPM at 210 bar and a CETOP-05 manifold.
- Motor15 HP, three-phase
- PumpGear pump, 40 LPM at 210 bar
- Tank250 litres, fabricated, internal baffles
- ManifoldCETOP-05
- Made to order
A custom 15 HP hydraulic power pack on a 250-litre heavy-gauge fabricated tank with internal baffles. A three-phase motor drives a positive displacement gear pump, and the CETOP-05 manifold carries a proportional relief valve, with a suction strainer and an oil level and temperature gauge. Built to the duty your machine needs.
Specifications
| Motor | 15 HP, three-phase |
|---|---|
| Pump | Gear pump, 40 LPM at 210 bar |
| Tank | 250 litres, fabricated, internal baffles |
| Manifold | CETOP-05 |
| Valves | Proportional relief valve |
| Accessories | Suction strainer, oil level and temperature gauge |
| Model | SES-HPP-150 |
